ORIGINAL Plans
Making a
Retaining Wall
(2014 - 2021) |
|
|
|

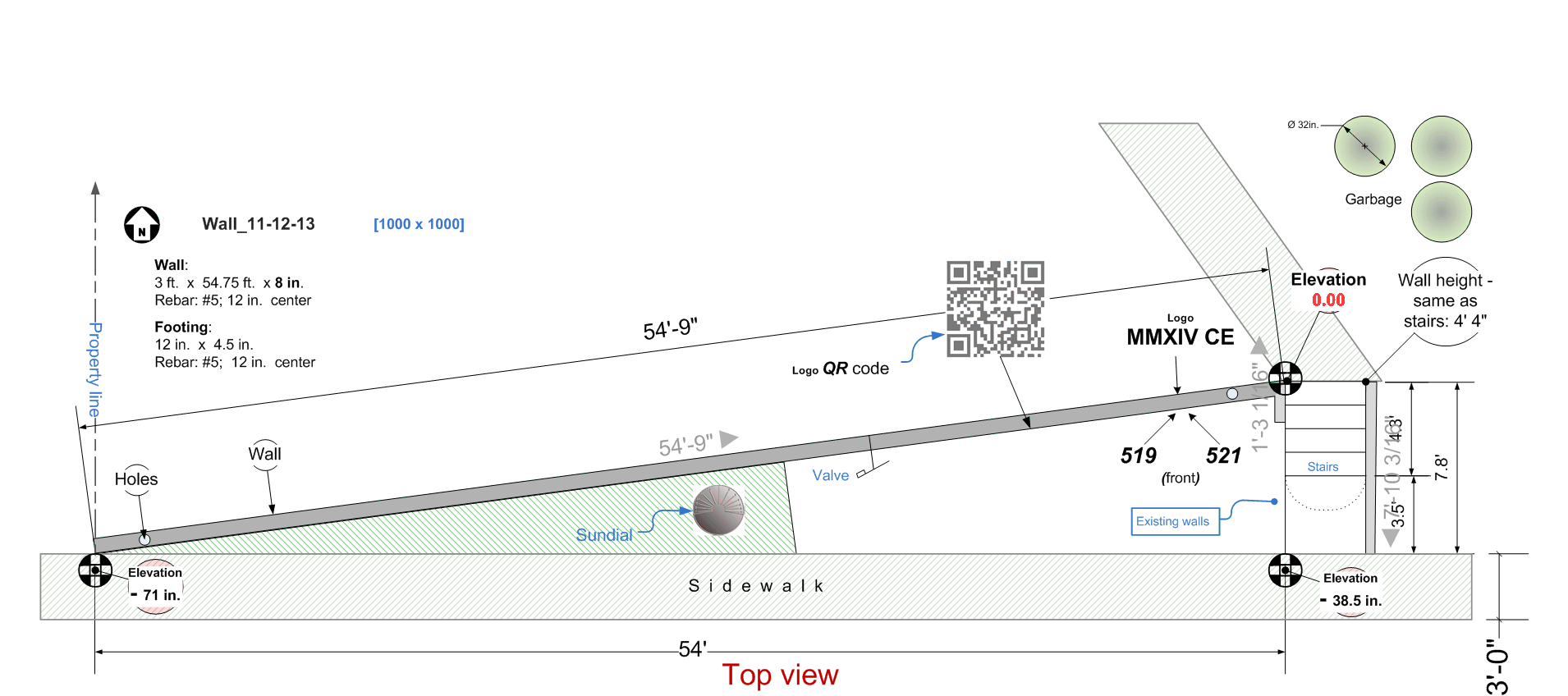

Notes:
■
Exact West
terminus near property line to be
determined
■
East terminus at top od existing stairs
■
Elevation is parallel to sidewalk
■
Date 'MMXIV
BCE'
- top surface |
|
■
House numbers recessed - front surface
■
Vertical holes for later insertion of
pipes
■
QR code form / mold provided by client -
front surface
■
Sundial provided by client to be
embedded in cement |
|
|

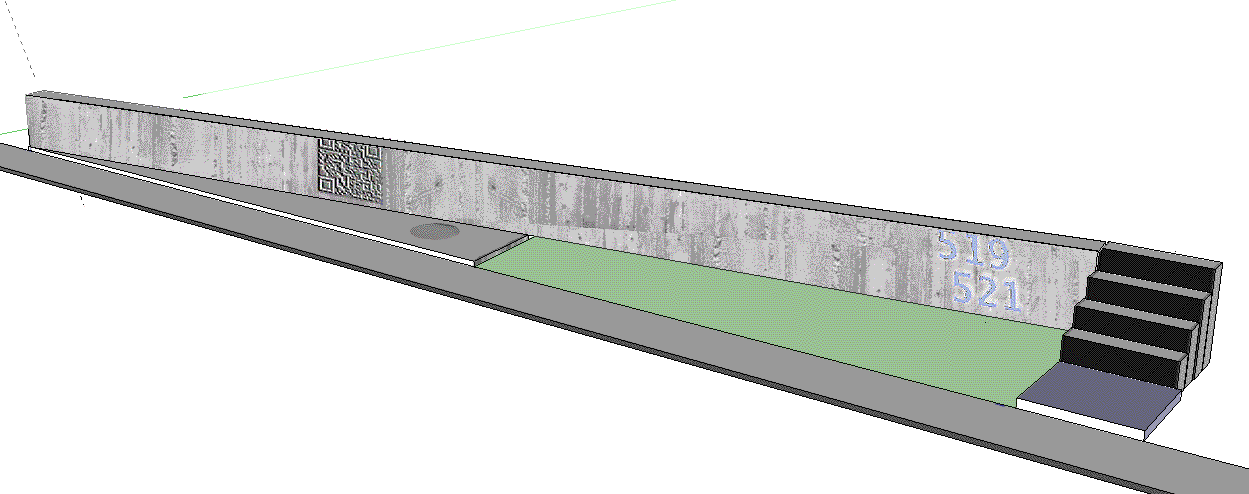

BEFORE: What it's supposed to look like when it's
finished.
From Photoshop image, courtesy Google street view. |
 |
Location |
|
BEFORE:
Google satellite view ca. 2014.
|
|
|

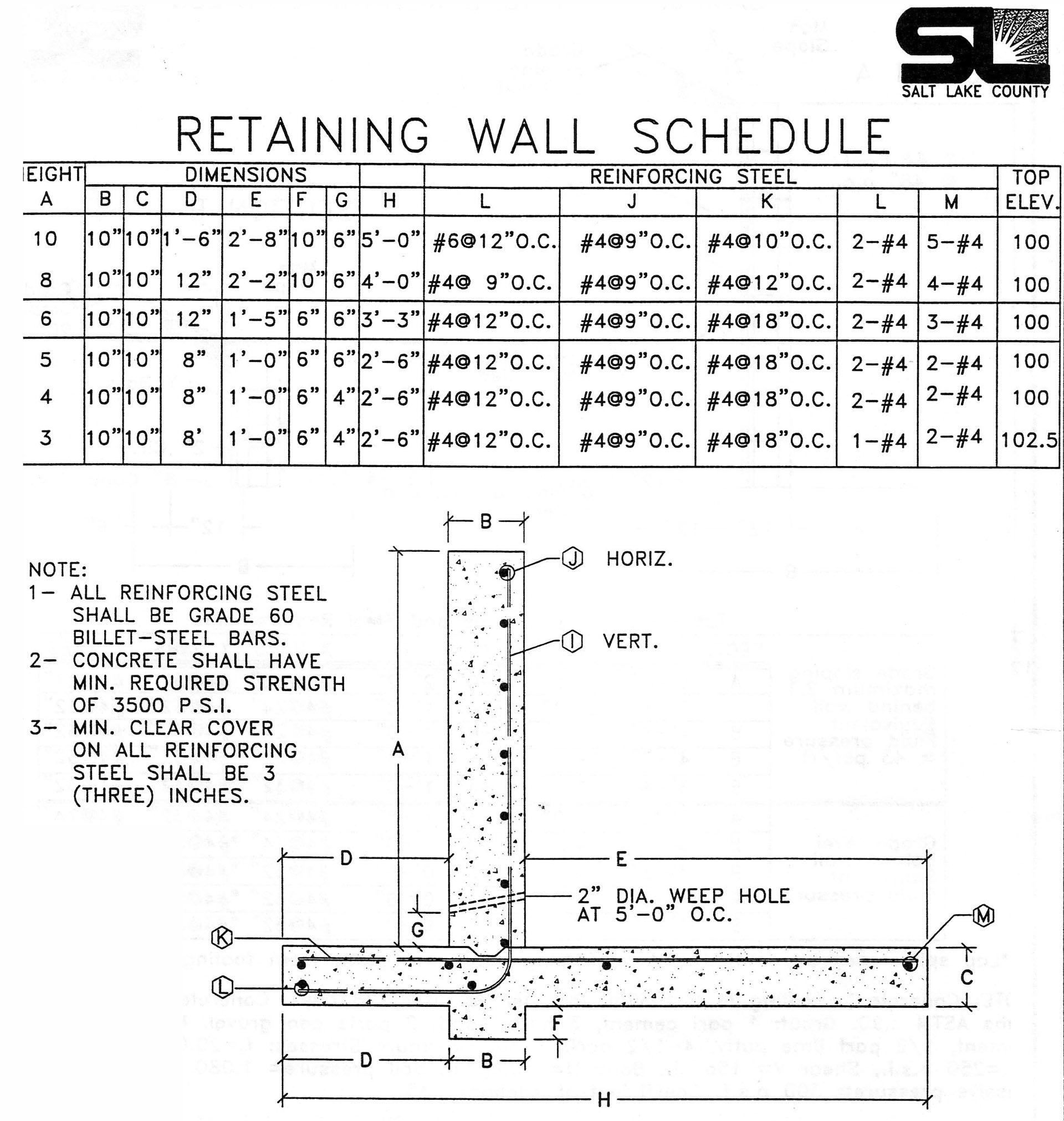

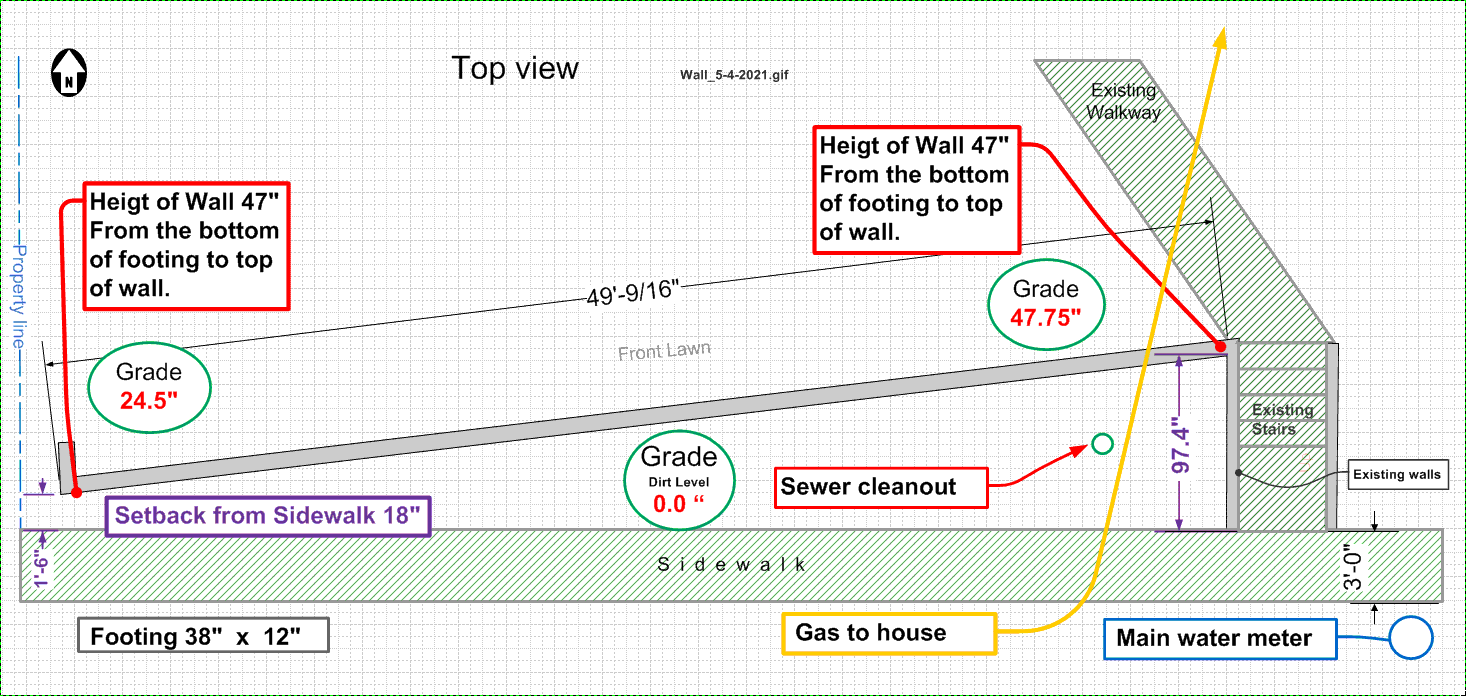

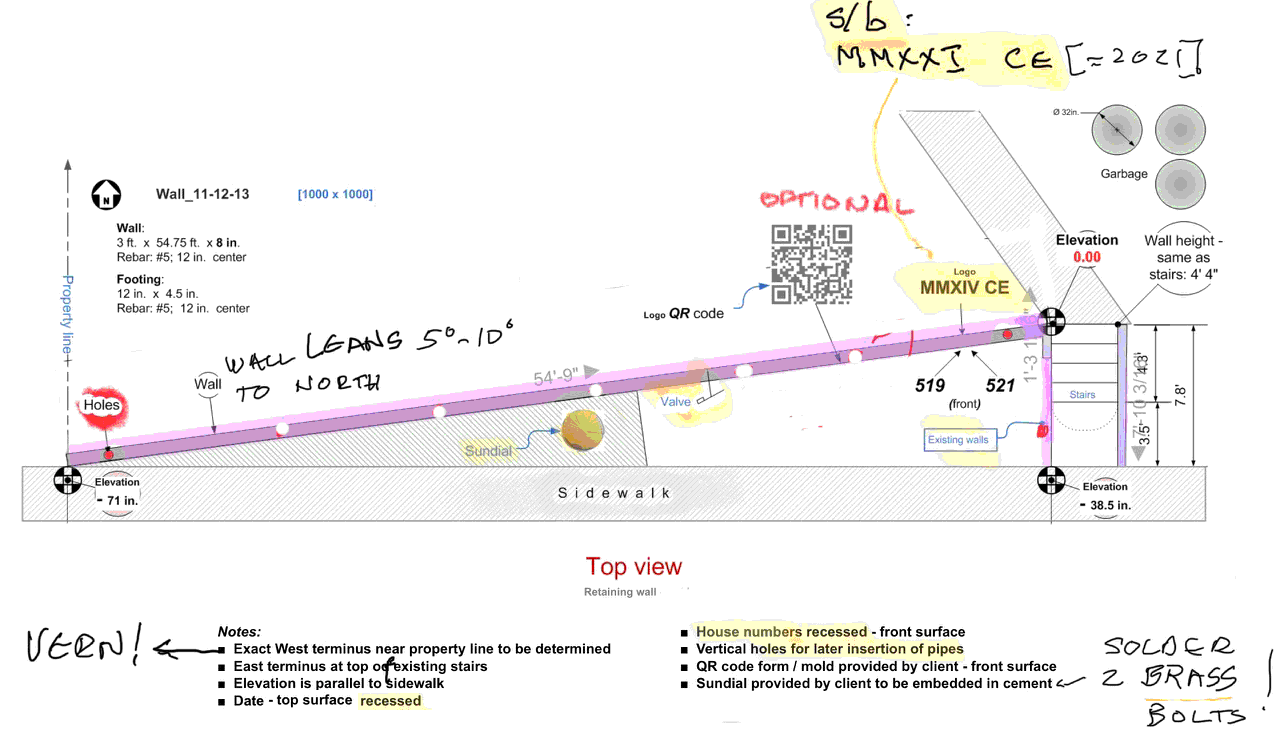

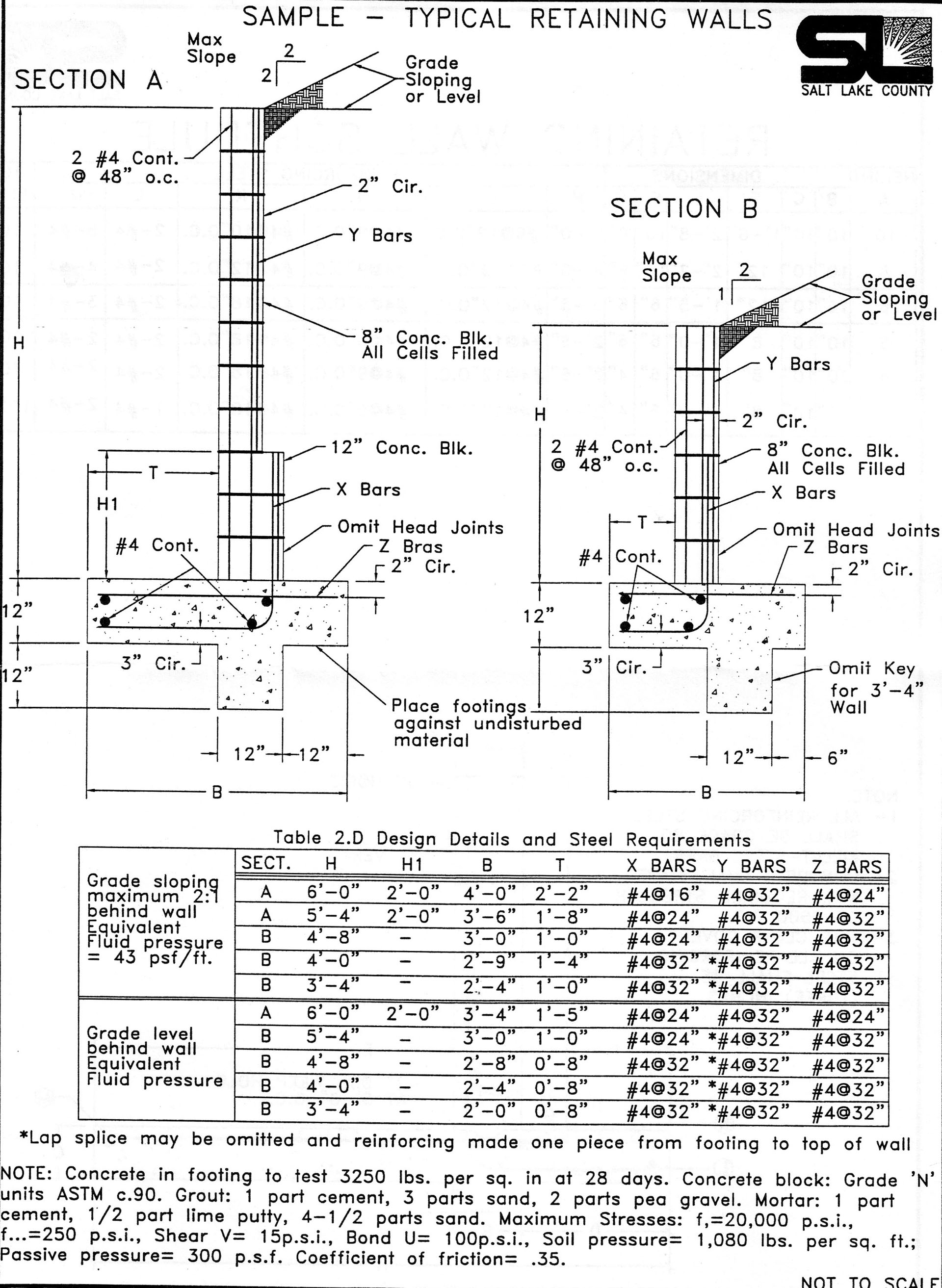

2021 Plan Modifications to Comply With
Building Permit - |
|
 |
Notes:
■ Wall extends from top of stairs
at East to sidewalk, West
■ Option 1: follow grade of
sidewalk
■ Option 2: level
grade
■ House Numbers "519",
above & "521"
below, embossed
in wall
■ Date and Logo embossed
■ Hose bib (
RED;
valve to drain irrigation
pipes)
|
|
 |
|
|
 |
 |
|
|
