Making a Bathroom ~ ADA Compliant

Links
ESK Quality Remodeling
Failed Bids

 Links:      CONTRACT


These items were used for this project... Click / tap images:

36" Folding Teak Shower Seat model
SKU: 310046 - was purchased from
Signature Hardware.
- failed after 2 yrs.
(Image is a link is to the equivalent item on Amazon.)

Wall Mount Folding Shower Seat


TOTO

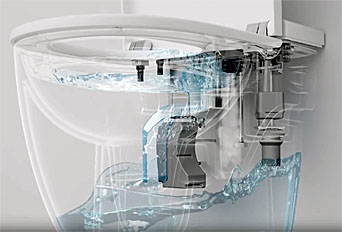

Roca  "Tankless" on You Tube
(Cool -not used in this project)

TOTO In-Wall Tank
  Link   Installation video

TOTO Push Plate

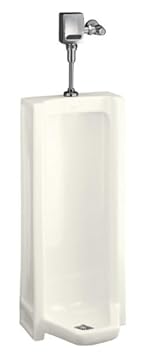

TOTO Urinal

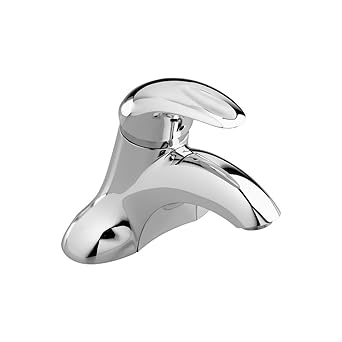

American Standard
0.5 Gpf Flush Valve
- failed after 2 yrs.

Corner Porcelain
Wall Mount Basin Sink

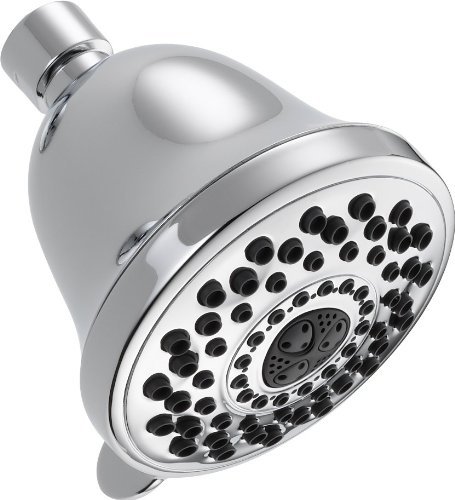

Delta Overhead Showerhead


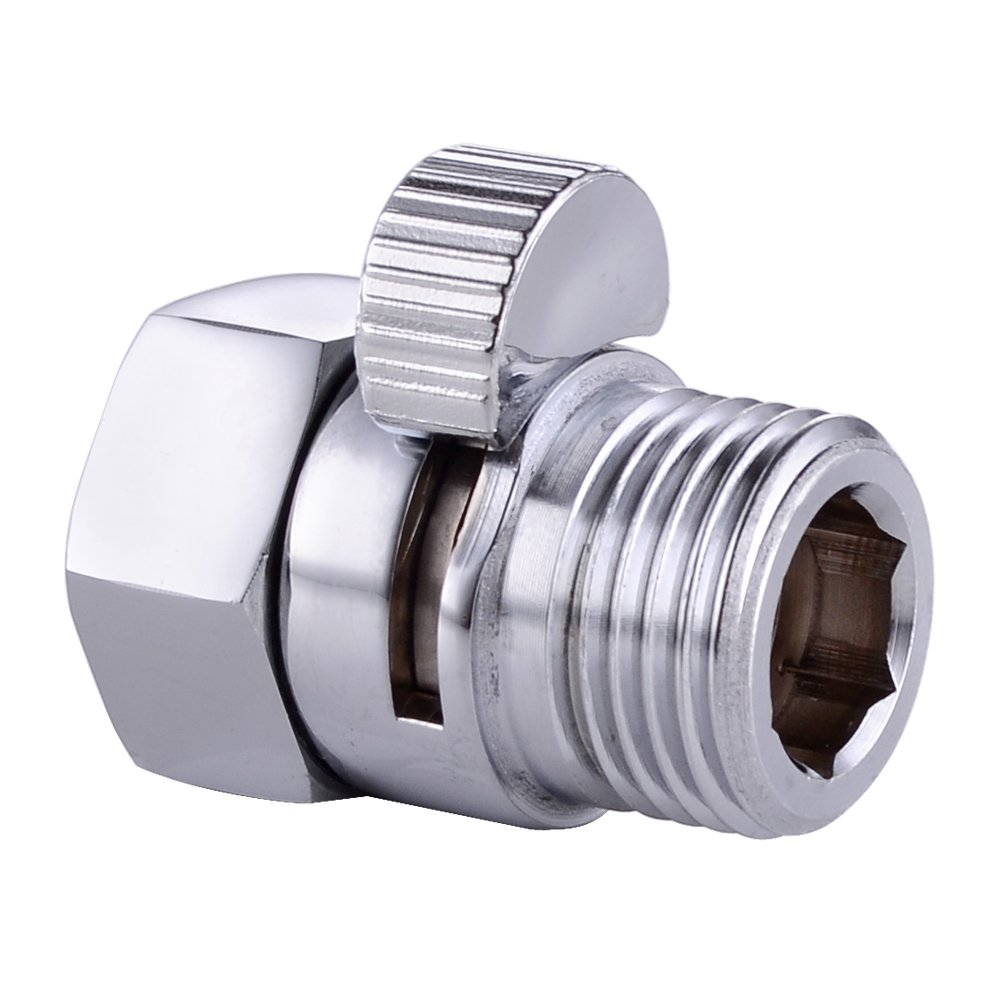

Danze Hand Shower

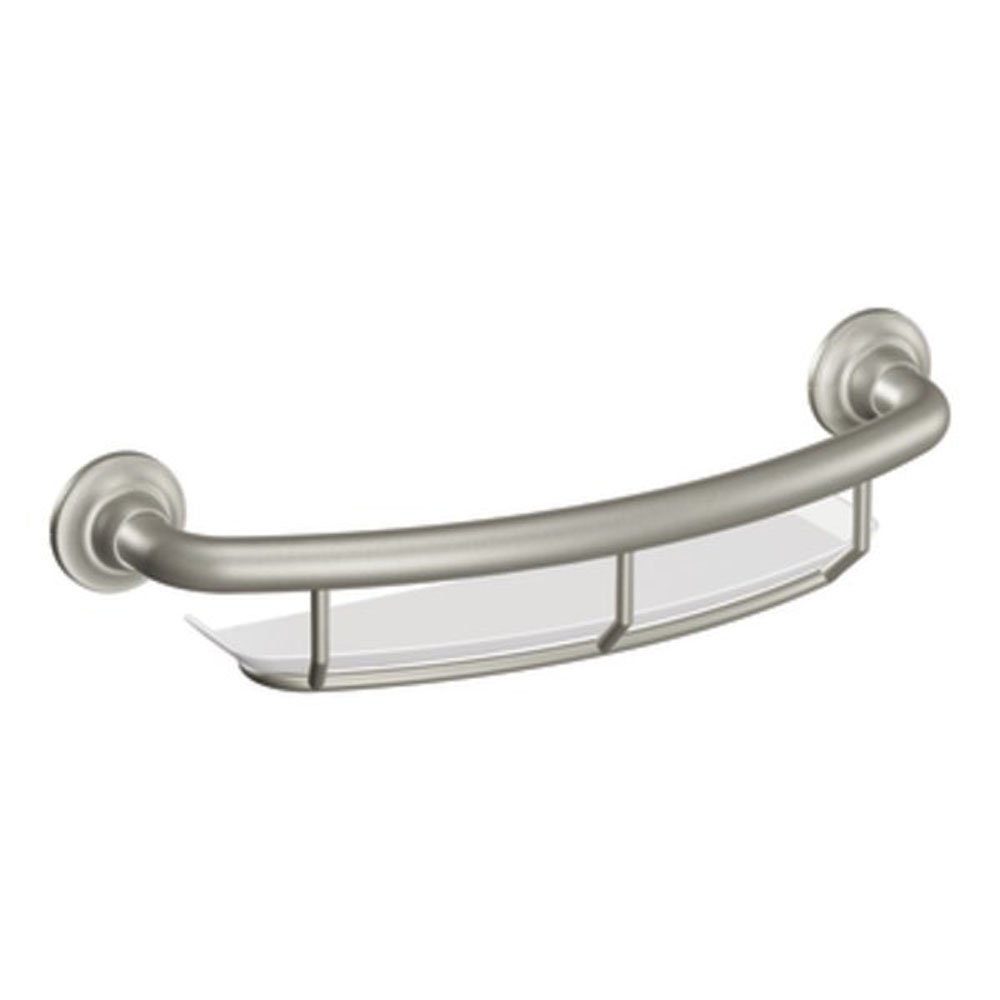

Moen 24" x 48"
L-Shaped Grab Bar

Delta TempAssure

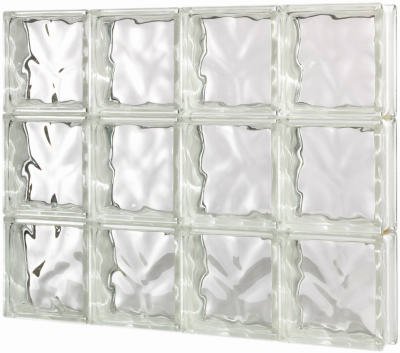

32 x 24 Glass Block

55.12 in Linear drain


Delta 3-setting Diverter


Delta Body Spray

LightInTheBox Waterfall Faucet
- failed after 1 yr.

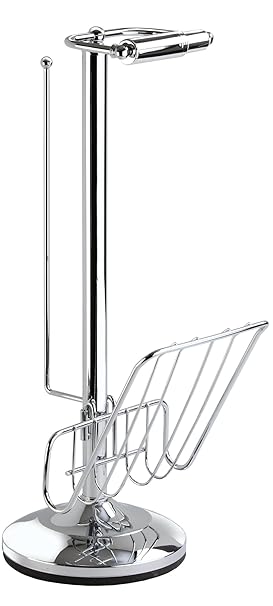

Recessed Toilet Paper Holder

Brondell Bidet Toilet Seat
PDF: Owners-Manual.pdf



Threshold


Specs: Panasonic FV-11VH2
Ceiling Mounted Fan/Heat

6"x6" Ceramic Dual Shelf Soap Dish


Ceramic Wall-Mounted Soap Dish

Danese Milano Waste Basket



Brushed Nickel Bath Light

Feit Electric LED 13.5-watt LED

Cree LED 9.5-watts 2700k Dimmable

2 ea. Medicine cabinets [LOWES]


Pre-hung door [LOWES]

Door Lock [LOWES]

Delta Faucet R10000-UNBX
Multi Choice Universal Tub
and Shower Valve Body


Delta R11000 3/6 Setting Diverter Rough


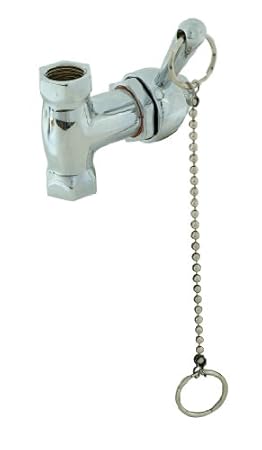

Spud

Gatco 4240 24-Inch
Latitude II Towel Bar, Cr



Delta Faucet 75912 Trinsic
12-Inch
Towel Bar




Gatco 1541SN  Towel Rack,
Satin Ni   10.5 x 26.3 x 8.4 in

Gatco 4692 Channel
Towel Ring, Satin Ni.

B45007J-CHR-C7
Hinged 3- Hook

Amerock H55451G10
Coat and Hat Hook

KES A2061 Double Prong
Robe Hook

Danze Shower Arm

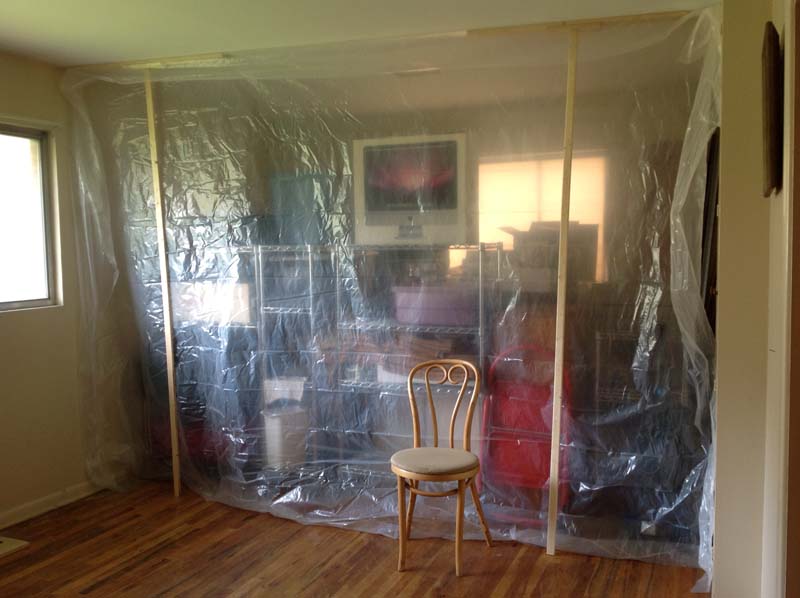

Clearing the work area - 2013

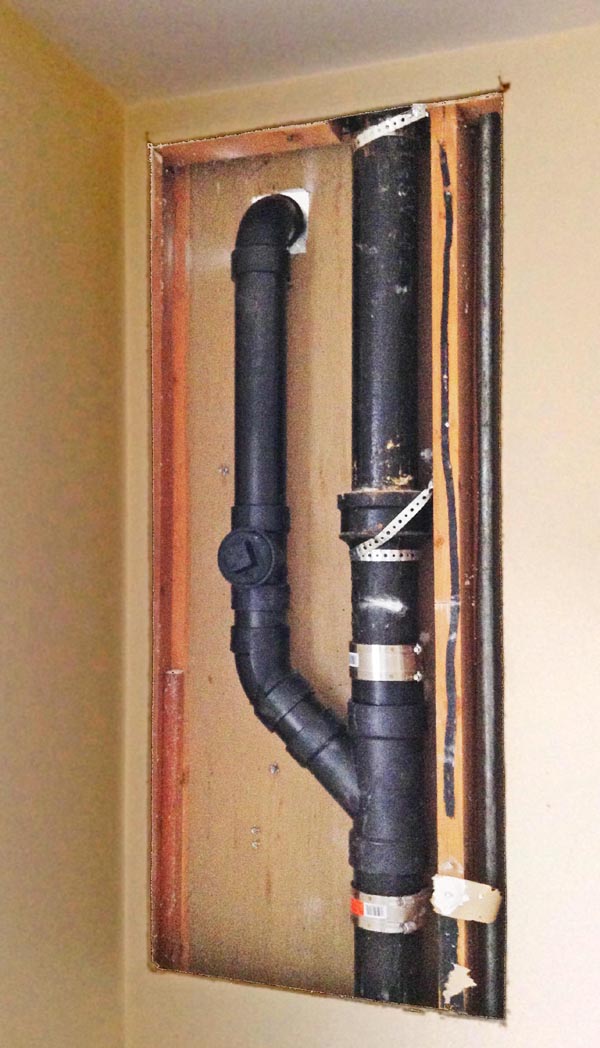

Effluent - Downstairs.
Touch image to enlarge

Effluent, encased -
Downstairs ceiling

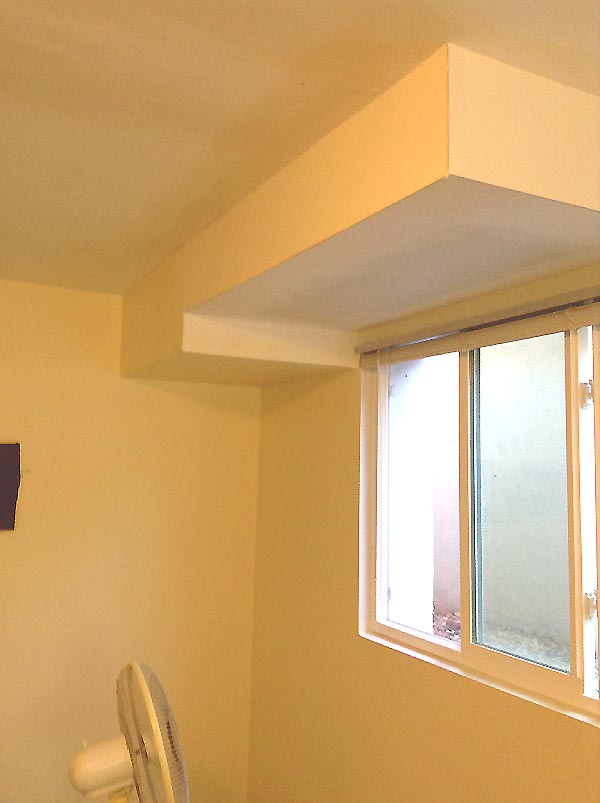

Downstairs ceiling -
space for effluent

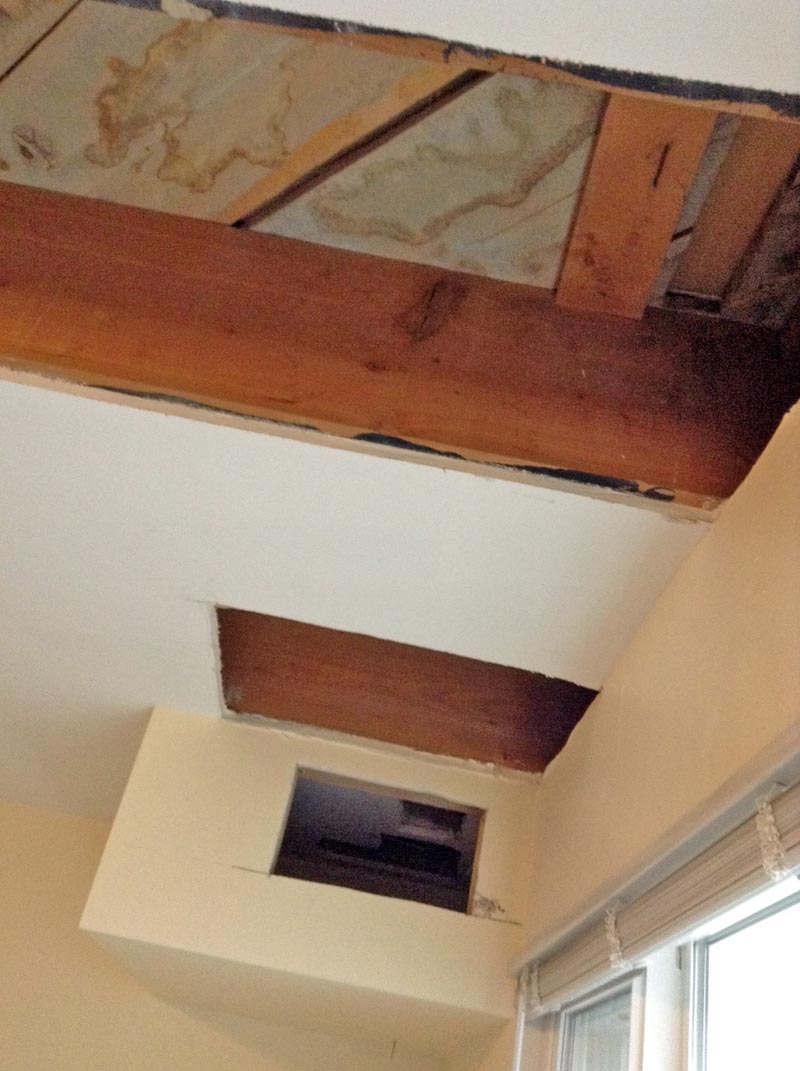

Downstairs ceiling -
air duct & pipe conduit


Preparing the Work Area - 2014

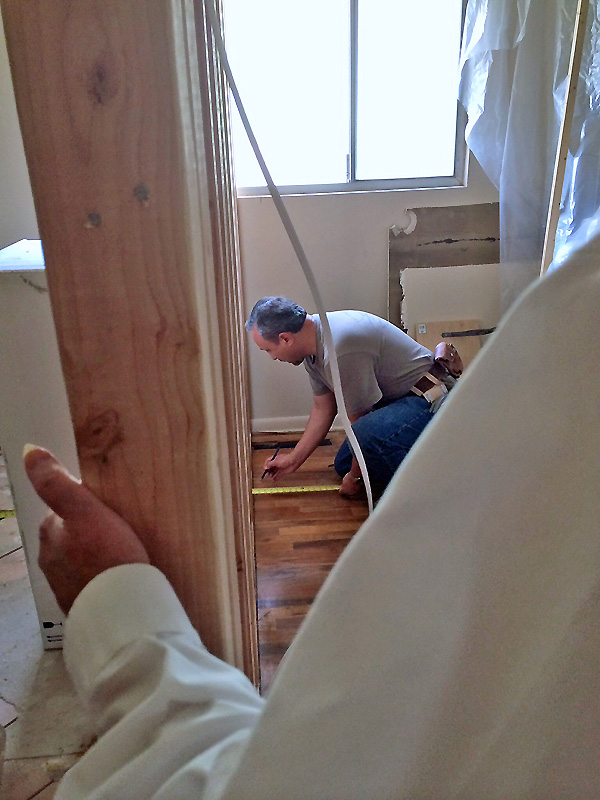

  April 2014 - New measurements: the old wall must go.

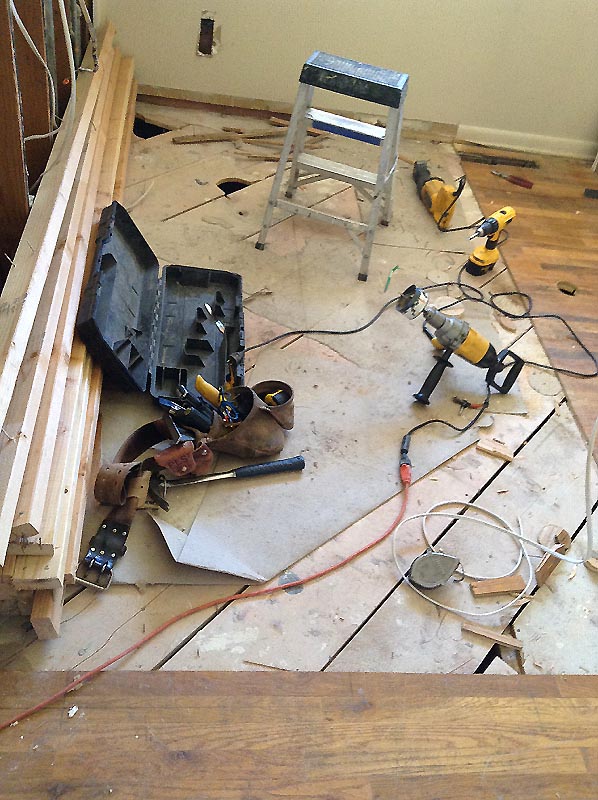

  May 30, 2014 - Re-starting work by Daniel Carpenter.




Construction



 TOTO in-wall toilet tank

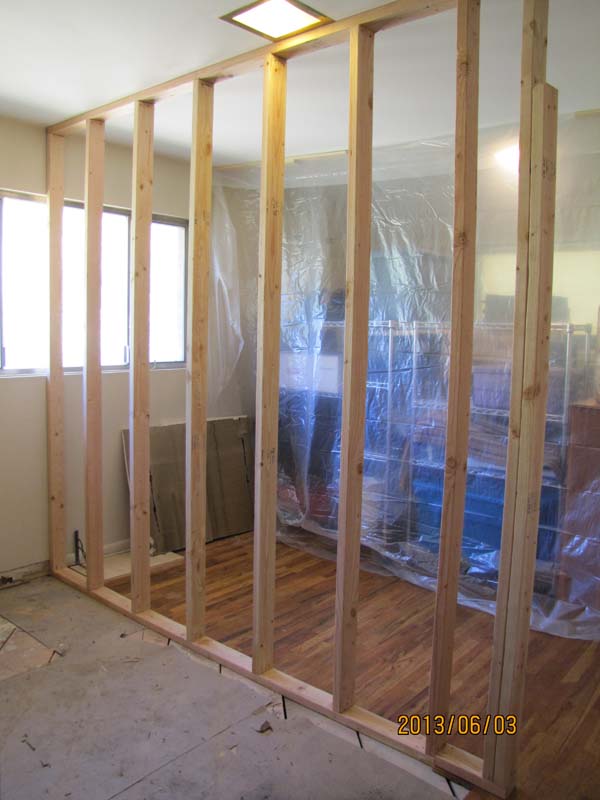

A wall, previously constructed in the
wrong location by
Dennis Blumenkrantz of Arrowhead Construction (above),
had to be be re-built (left & below).

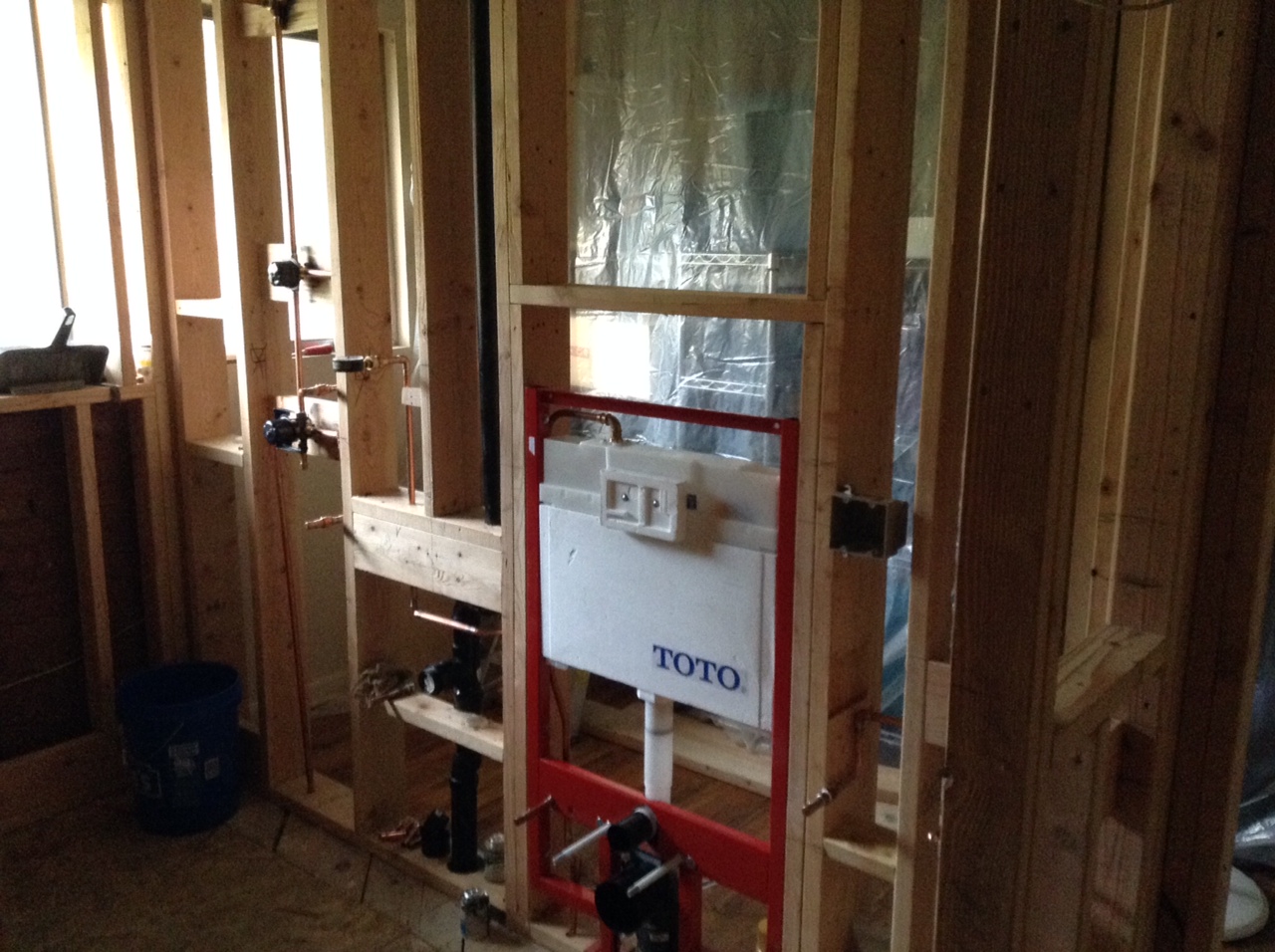

TOTO in-wall toilet tank,
     electrical wiring,

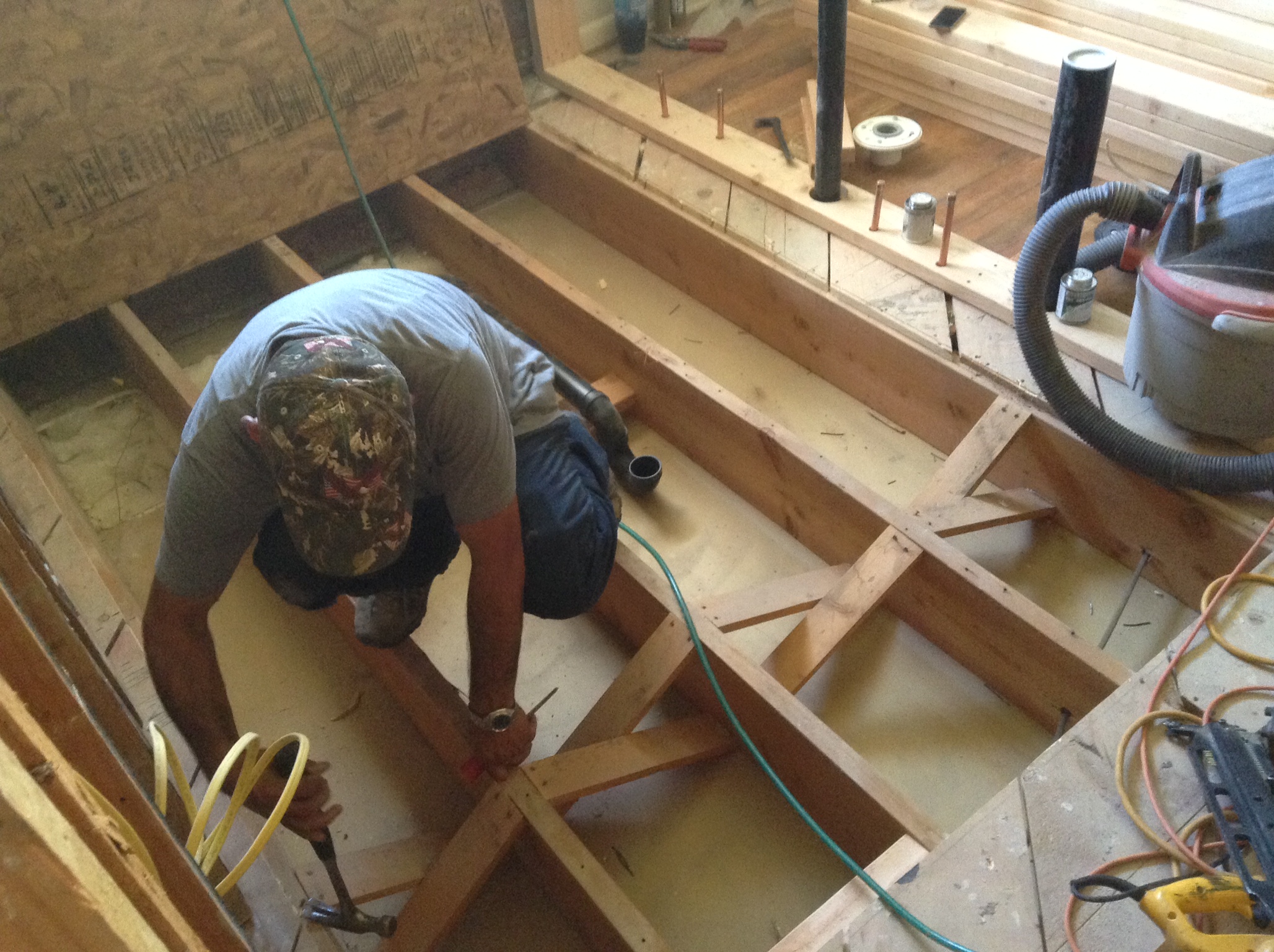

     plumbing and
     heating duct.



Making the Window

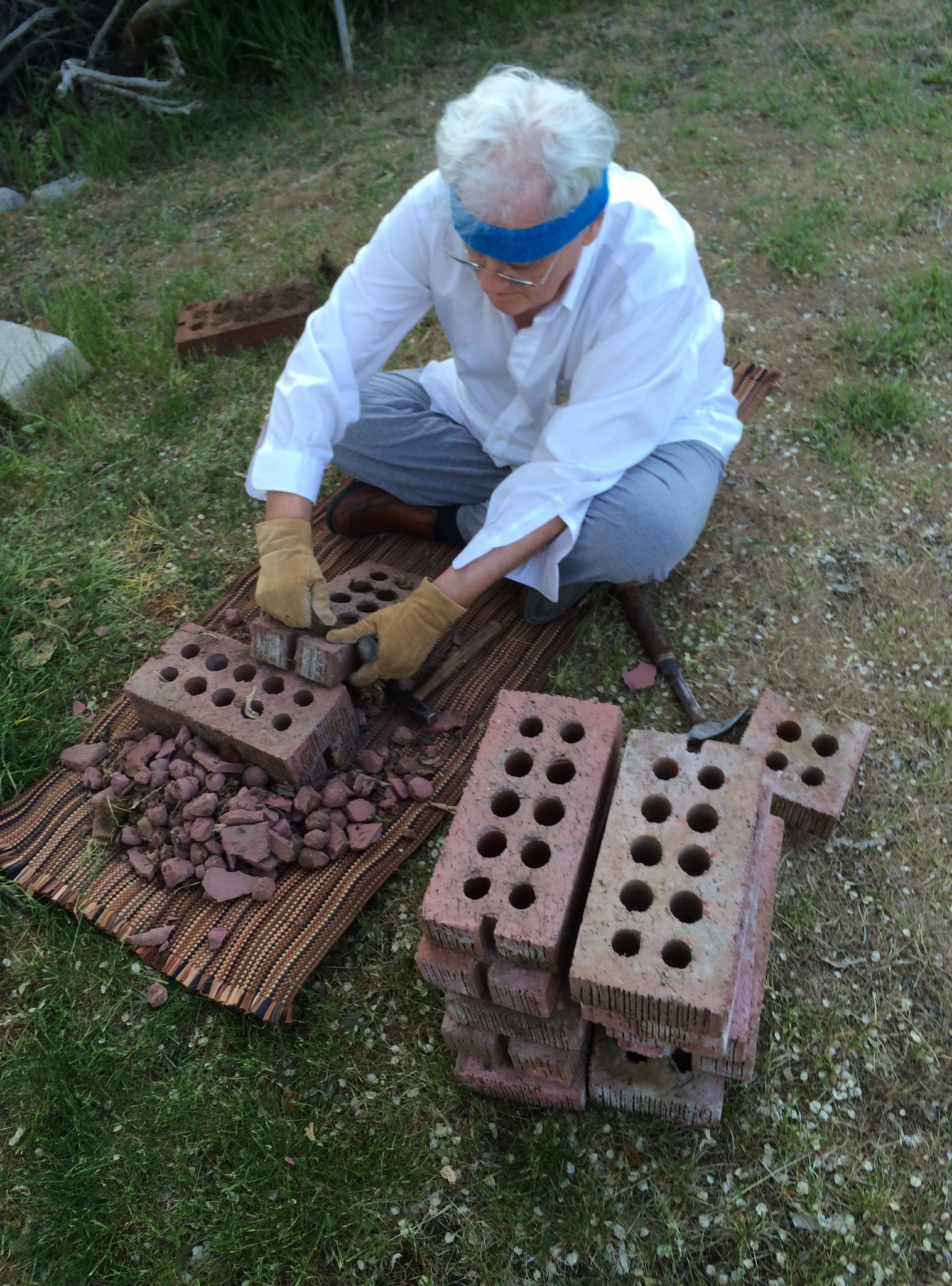

Cleaning the bricks which have lain fallow since 1988.

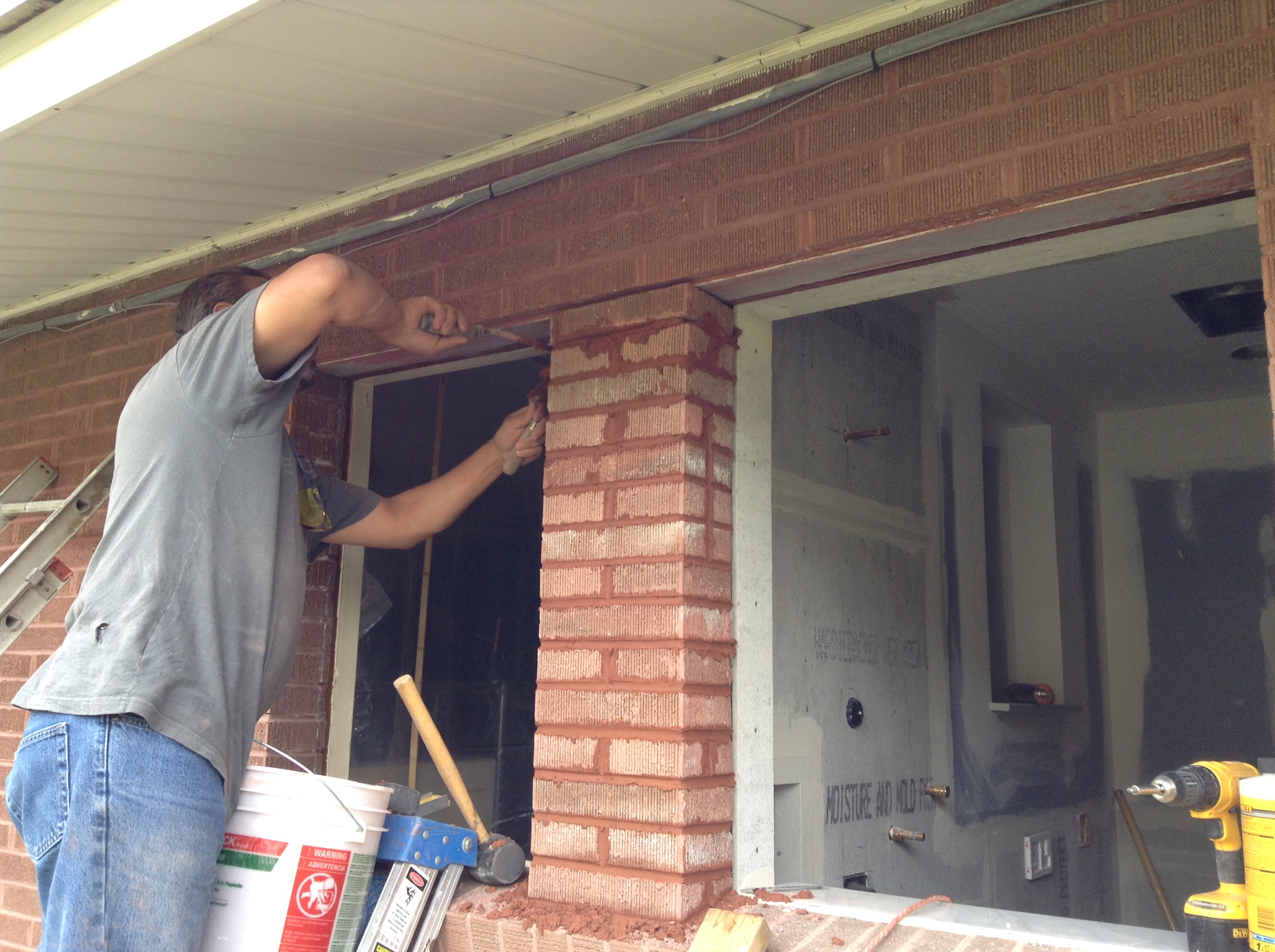

Laying brick; splitting an existing window.

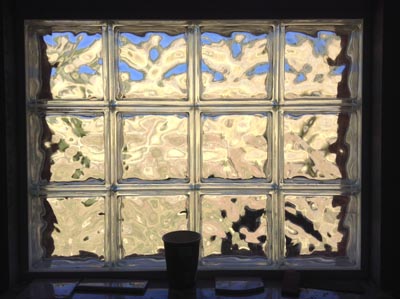

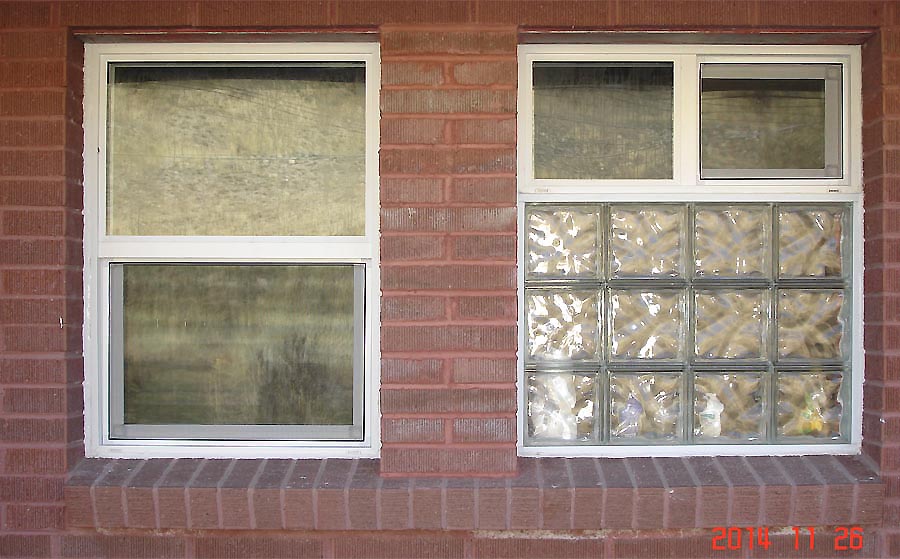

Window



The Floor

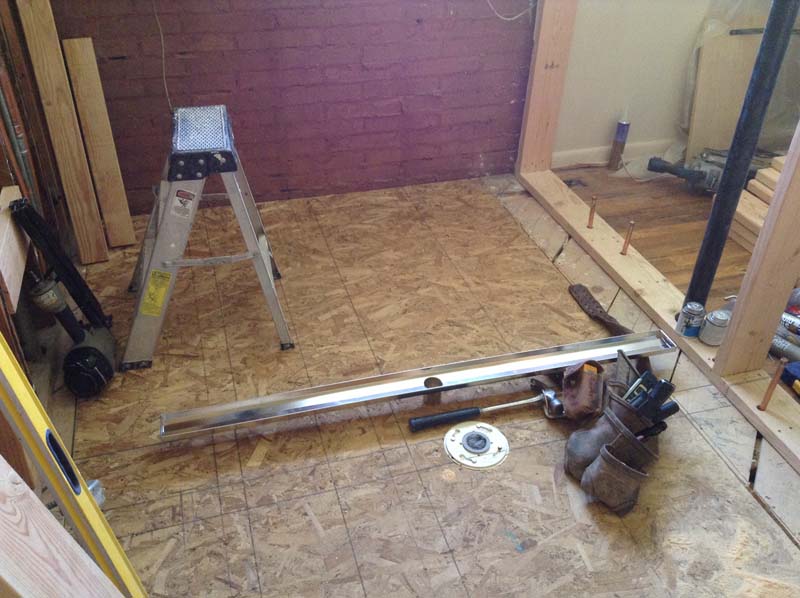

Checking the linear Drain for fit.

Curing the ThinSet - Wait 10 days.

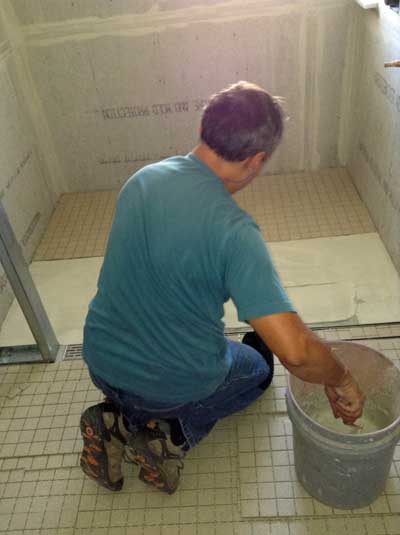

Laying tile.

Floor & linear drain. Night view.

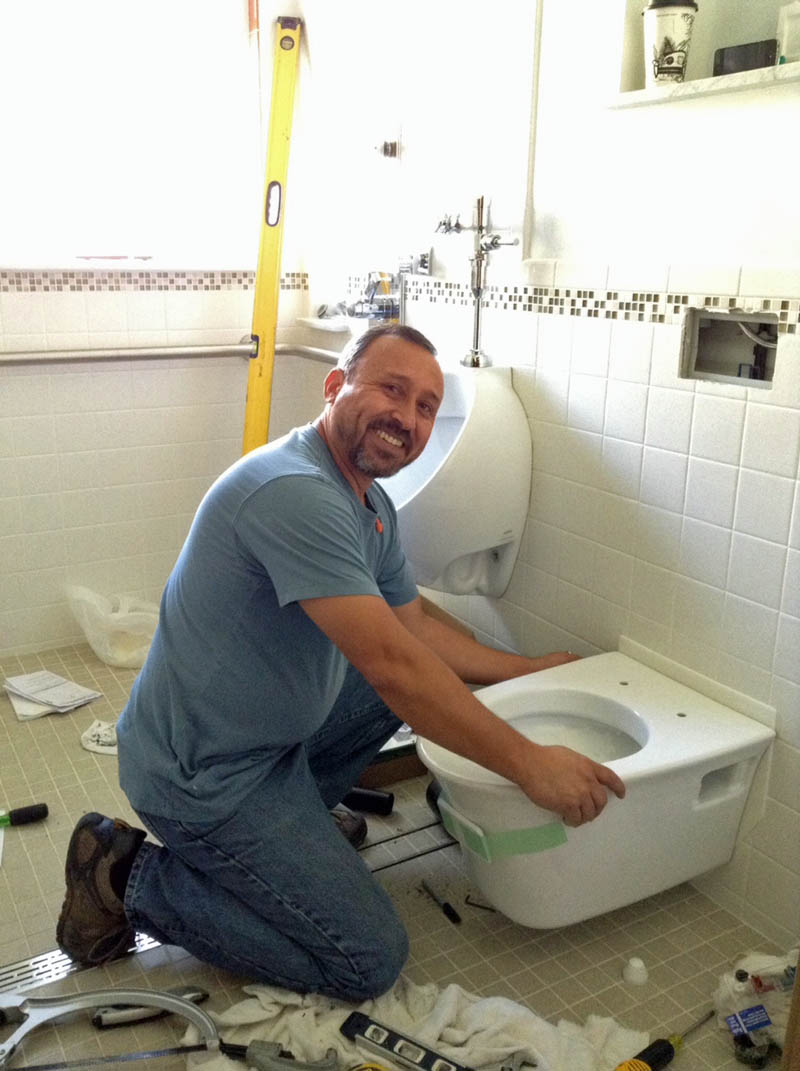

October 2014         Daniel Carpenter

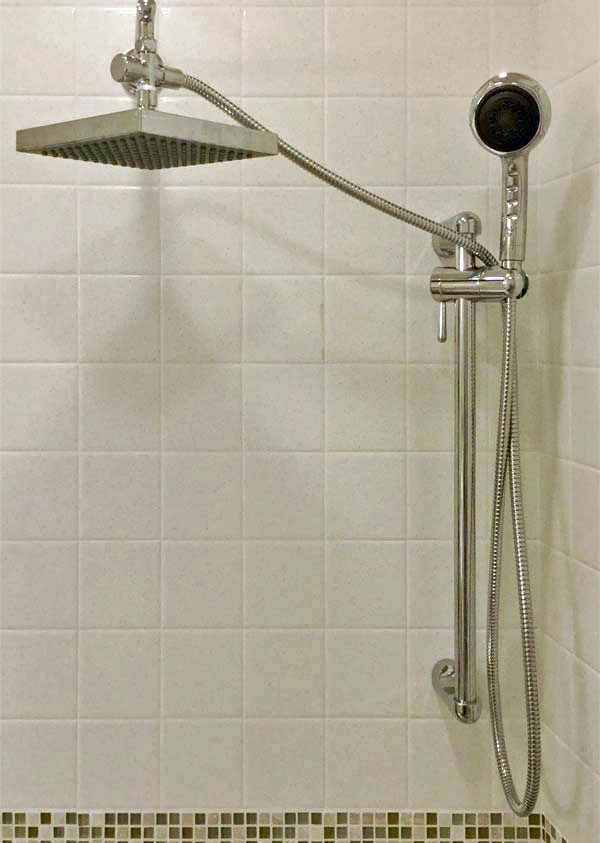

Overhead shower & hand-held shower.

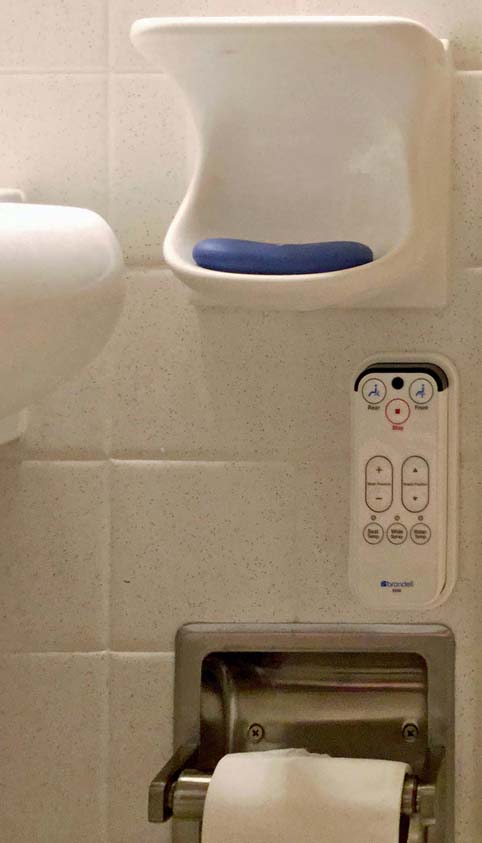

Soap dish, bidet remote control, TP holder.



 Link:
CONSUMER REPORTS:  Create a beautiful bathroom - attractive upgrades that make the bathroom a safer place (Video).
Some of these ideas were applied in this project.



The Threshold

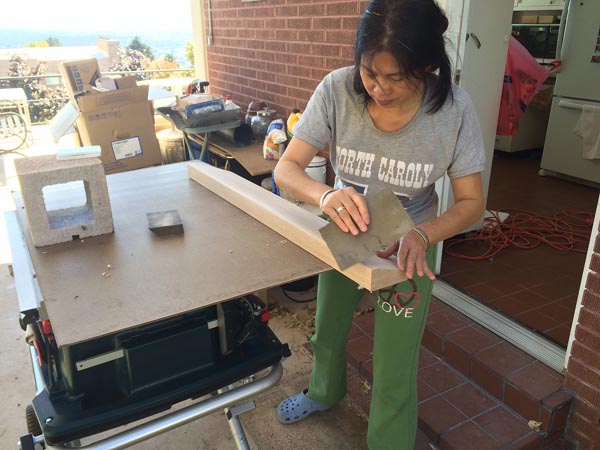

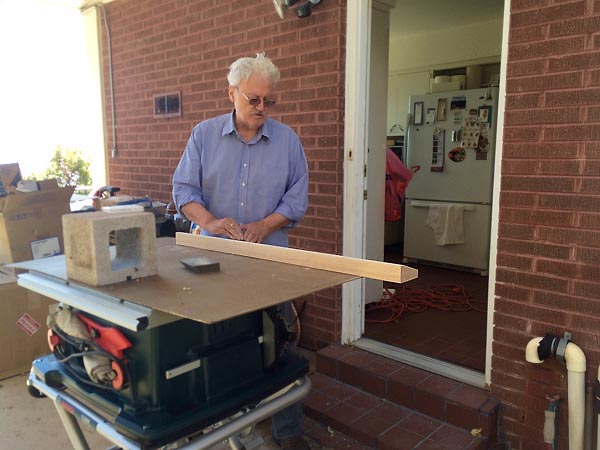

    Fixing the threshold - it was made too long (by Huetter Mills).       -  Oct 2014


Fixing the threshold      -  Oct 2014


  Oak threshold

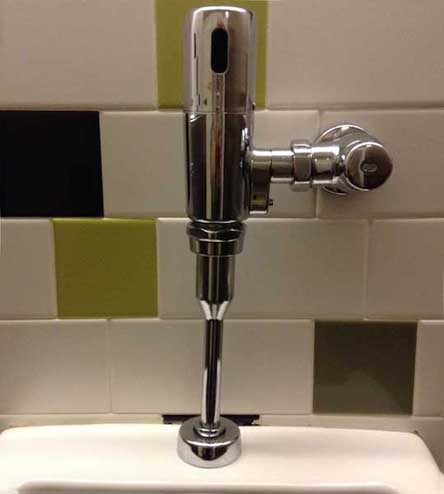

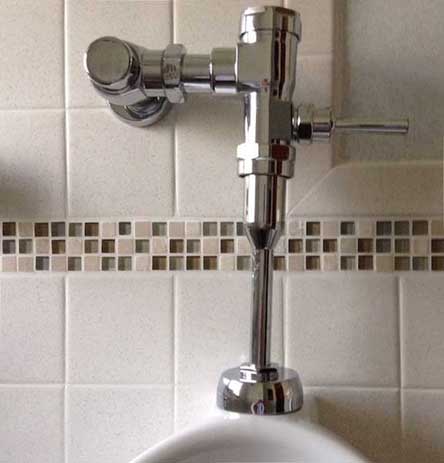

   The urinal's pipe is not straight...


...but that's OK!

The Utah Museum of Natural History
has the  same problem,  and that's a
multi-million dollar building!     :-)

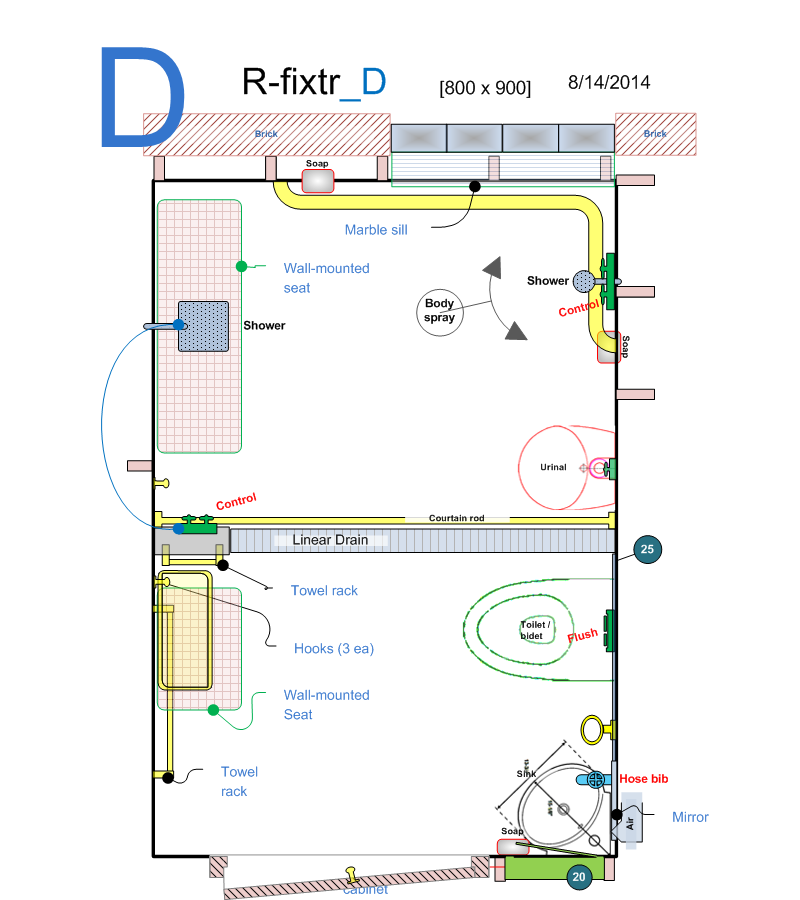

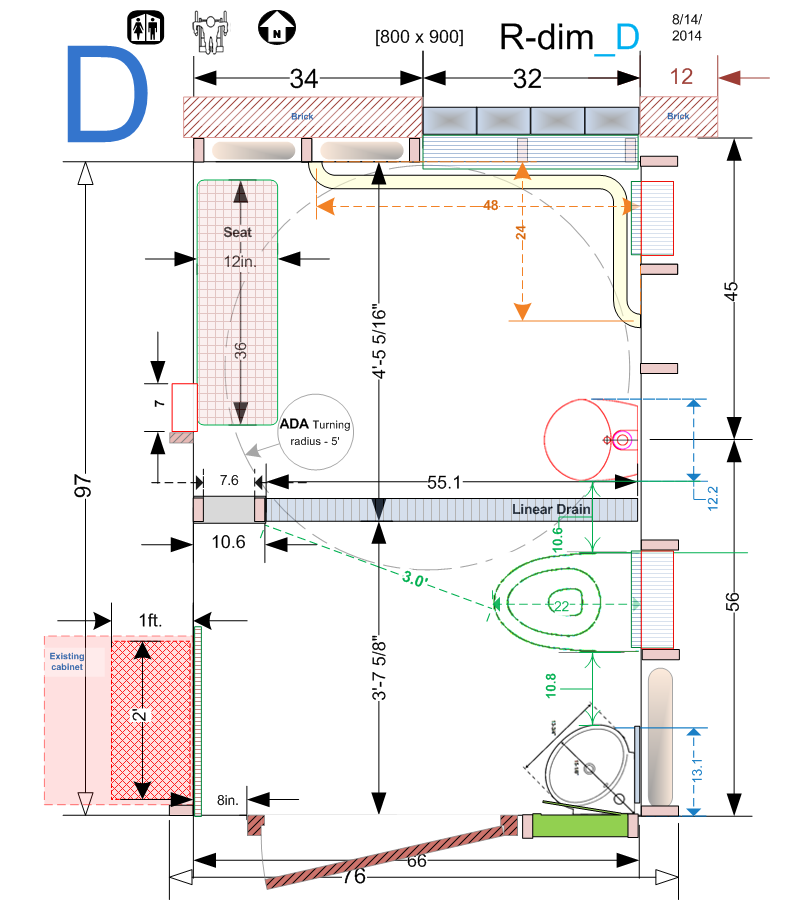

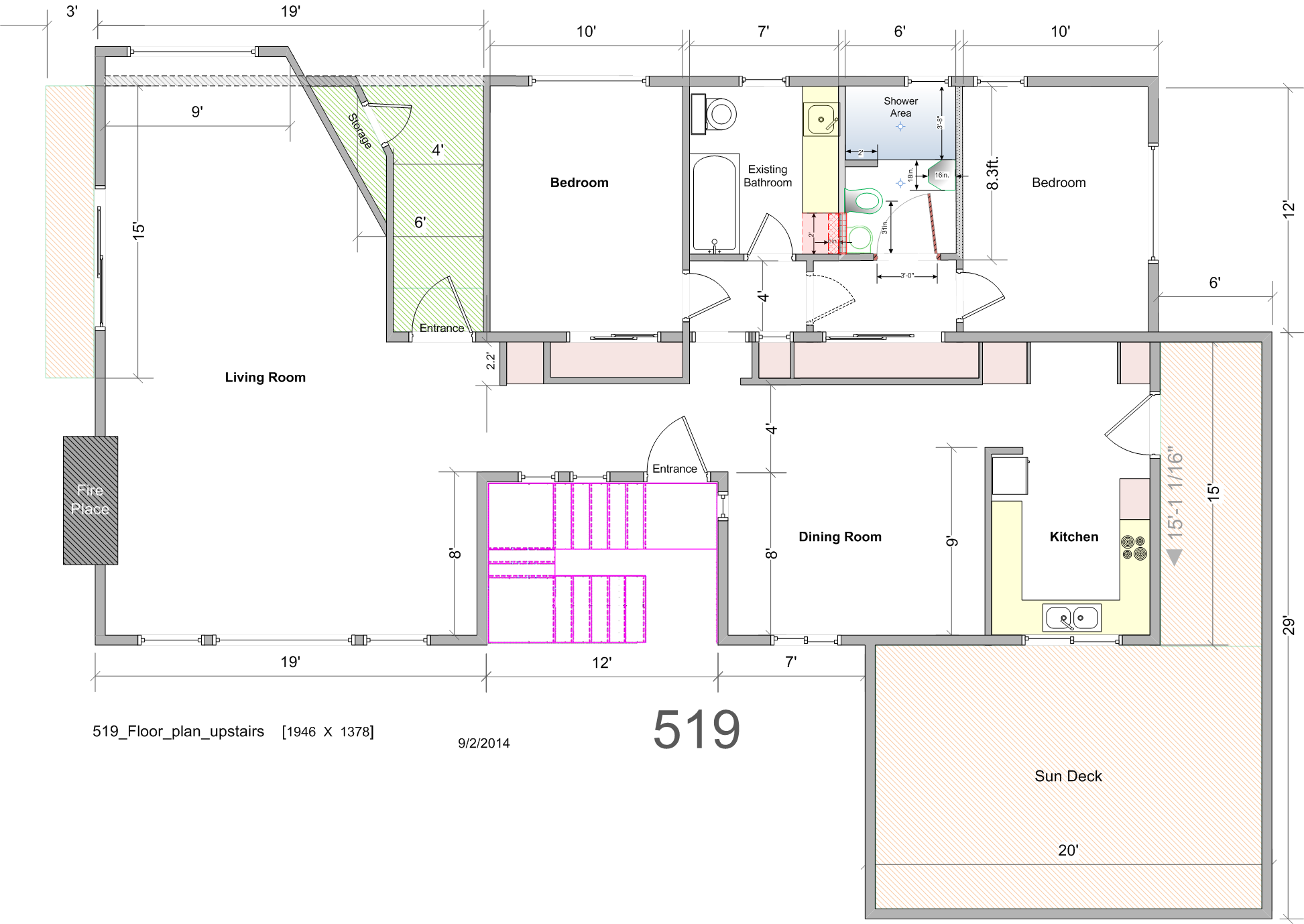

Blueprints





Touch diagrams to enlarge                      Electrical Diagram













    360 views

    360 view



    360 view


(Touch a SPHERE image and drag your mouse across it.)      2014 @Com. All Rights Reserved.
